Description

20 years of industry experience

Are mainly used in the telecommunication service center,
Railway Control Center ，internet/data exchange center,
industrial automation, automated office, DC screen/cabinet, etc.
To meet your various needs.

Product details

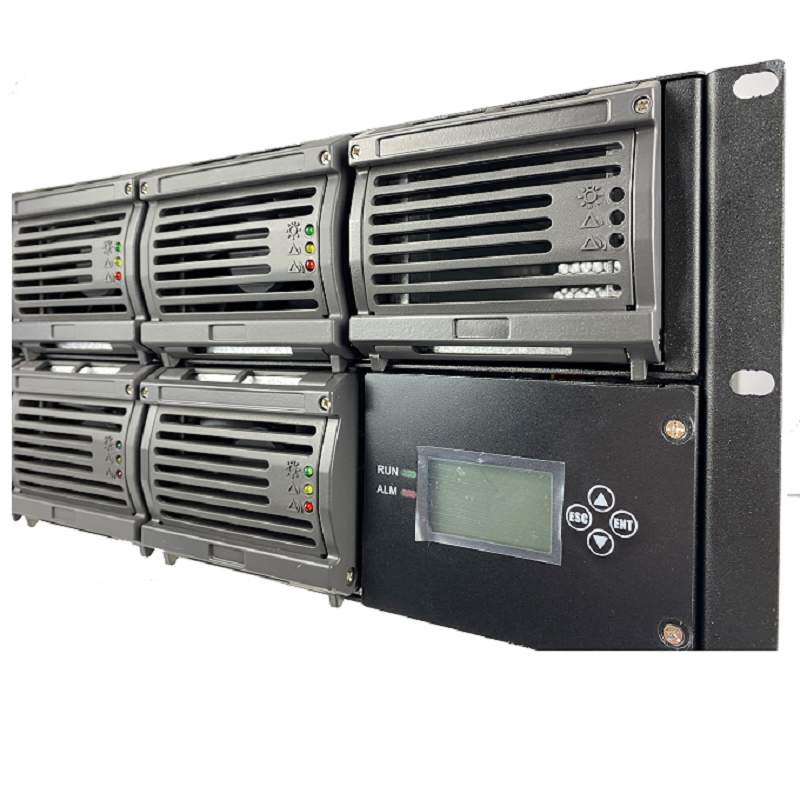

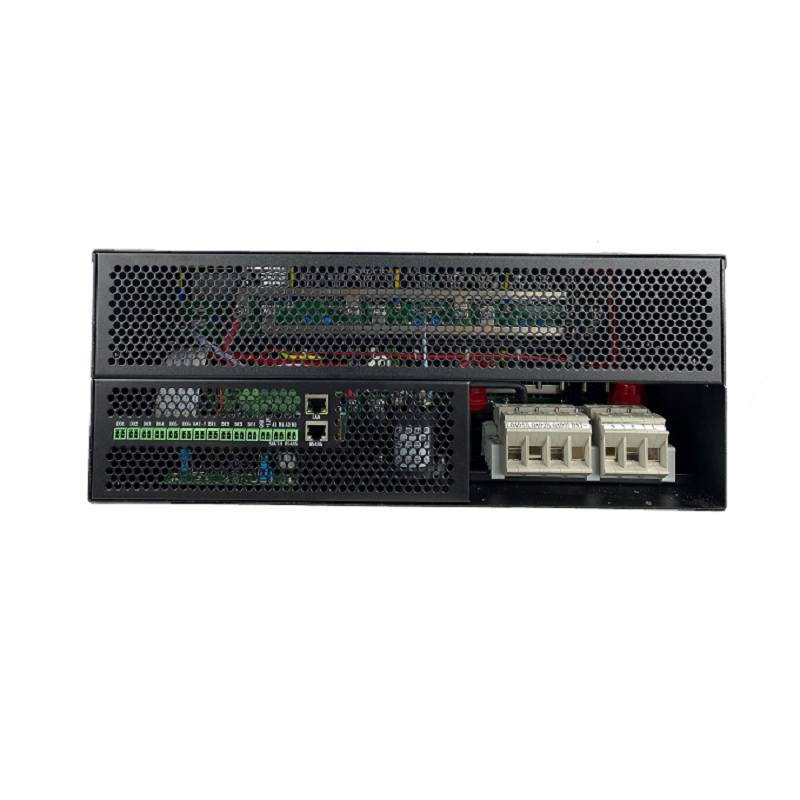

Power supply 220VAC DC 48V-50AS Modular rectifier modulated 48v 100a 50a power supply

Product Name	Power supply 220VAC DC 48V-50AS Modular rectifier modulated 48v 100a 50a power supply
Application	Telecom station, Transmission equipment, power stations
Function	Phase AC supply voltages into DC voltage adjustable to the needs of the application.
Package	1 pc /carton

Features of Monitor:

• Monitors the power system operating status in real time ;
• Detects and reports alarms in real time
• Supports multiple remote management modes.
• Supports effective energy conservation management.
• Supports comprehensive battery management.
• Supports intelligent temperature control management.
• Supports flexible and programmable logic control.
• Supports detailed data records and performance statistics.

Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ

2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A

Output：220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A

Company profile

Digital Input	6 DI	LCD display	Input/output voltage、Frequency、output current、Environment、Rate
Local Interface	Display, Menu Structure Key Pads, LED	Power status	City power、Output、Under voltage、overload voltage
Remote Monitor	TCP/IP,Rs485,SNMP (Optional),6 alarm Relays	Operating Temp.	-40 to +55°C (-40 to +131°F)
Battery Mid-Point	B-V2 /B-V1	Storage temp	-40 to +70°C (-40 to +158°F)
User	4 Group	Humidity	5% to 95% RH non-condensing
intelligent Wake management	Yes	MTBF	> 10,0000 hours (Ambience : 25°C)
Battery Temp. Sensor	Yes	Historical Alarm Records	Up to 1000 Units
Temperature compensation	Yes	Altitude（M）	≤3000m,more than, Rise every 100m, 1% derated.
		Altitude（M）	≤3000m,more than, Rise every 100m, 1% derated.
